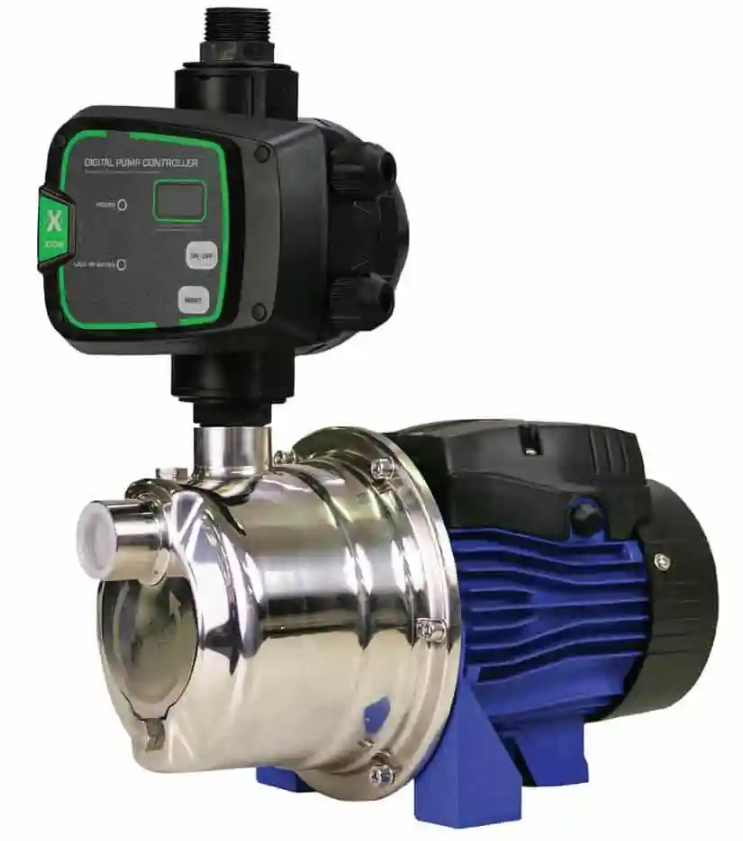

Bianco INOX45S2NXT Pressure Pump

Bianco INOX45S2NXT Domestic Pressure Pump

The pump is a self-priming surface mounted pressure system pump supplied with plug and play leads (IEC type). The self-priming ability provides excellent suction capacity of up to 9m. Used especially for supplying water to domestic installations.

The pump is characterised by:

• Automatic electronic pump control fitted and wired with plug and play leads so a licensed electrician is not required during installation.
• Includes fully electronic pump controller for automatic pump starting, stopping and restart after power loss and water loss.
• Run dry protection to prevent pump damage
• Automatic electronic control has in-built check valve to prevent water backflow through the pump.
• 2.2bar pump cut in for greater versatility.
• Corrosion resistant pump body, diffuser and impeller to ensure pump durability
• High quality mechanical shaft seal and high quality bearings
• 240V single phase TEFC motor with in-built auto reset thermal overload to prevent the pump from overheating.

Applications

• Used especially for supplying water to domestic installations and applications where a suction lift is required.

AS/NZS 4020 Drinking Water Approved.

This pump includes the Bianco iCON nXt series of pump controller.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features

• Digital display gives you a real time indication of system pressure
• Anti-cycle Protection
• Dry run protection with auto restart function that tests for water availability every 24hrs
• Anti-seize function if pump has not operated for last 24 hours
• Controller automatically restarts pump after a power failure
• Easy assembly and removal using push-n-connect fitting with U clip
• Complies to AS/NZ 4020 drinking water standard
• Over pressure protection turns pump off when 10 bar is reached
