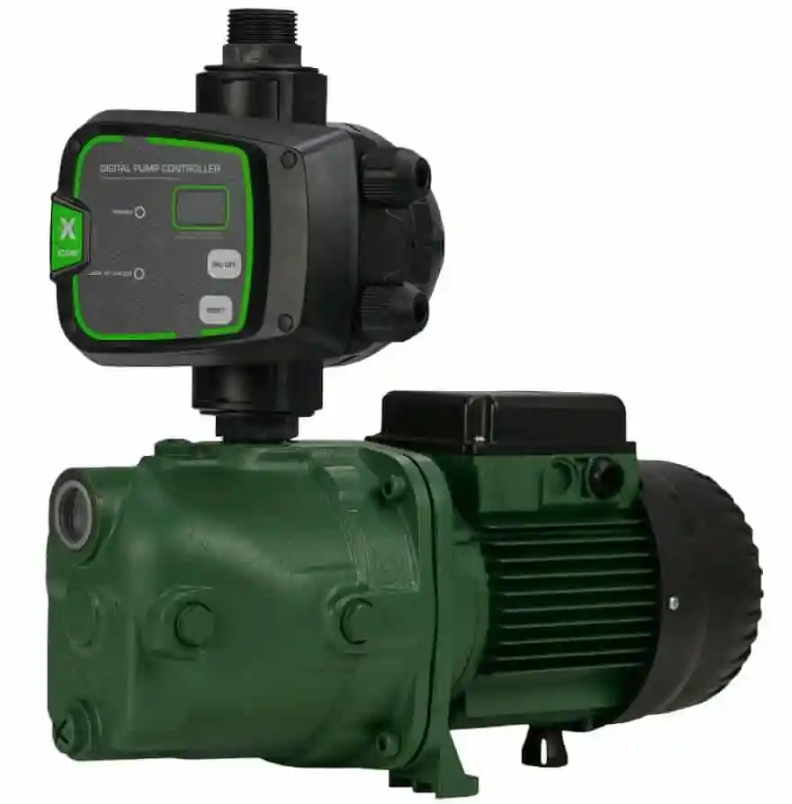

DAB 102NXT Cast Iron Pressure Pump with nXt Controller (6 Taps)
  • DAB 102NXT Cast Iron Pressure Pump with nXt Controller (6 Taps)

DAB 102NXT Cast Iron Pressure Pump with nXt Controller (6 Taps)

$650
Quantity:
SKU:
102NXT
Weight:
15.00 KGS

Specifications:

Other Details

Output:
1HP
Outlet:
1"
Max Flow:
60 L/Min
Max Head (Pressure):
53.8m (545kPa)
Size:
670 x 250 x 300 (mm)
Ideal For:
Clean/Rainwater

Description

Product Description

DAB-102NXT Cast Iron Pressure Pump with nXt Pump Controller

Self priming cast iron jet pumps DAB jet pumps are renowned for their unique self priming and extraordinary deep suction capability: up to 9 metres at sea level. Available in Cast Iron and stainless steel, they are designed to handle abrasive and corrosive water which makes them ideally suited for spear point applications. 2 year pump parts & labour warranty.

Automatically restarts after water loss or interrupted power.
Dry run protection protects pump from damage
Eliminates water hammer protecting plumbing
Compact size for easier installation



6

Controller

This pump includes the Bianco iCON nXt series of pump controller.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached

Overload protection

nXt Controller Data
Function ON/OFF
Modes 1
Size 1.5Kw
Rated Voltage 220-240V AC
Max Amps 10
Rated Power 1500w
Rating IP65
Union Size 1″
Start Pressure 2.2 bar (32PSi)
Stop Pressure on no flow
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication –
Accessories (Sold Separately) –
1 ¼” Union Kit

2 Year Manufacturer Warranty
