DAB 151NXTP Pro Jet Pump Cast Iron Shallow Well Pressure Pump (8 Taps)
  • DAB 151NXTP Pro Jet Pump Cast Iron Shallow Well Pressure Pump (8 Taps)

DAB 151NXTP Pro Jet Pump Cast Iron Shallow Well Pressure Pump (8 Taps)

$1,610
Quantity:
SKU:
15NXTP
Weight:
34.00 KGS

Specifications:

Other Details

Output:
1.5HP, 1.1kW
Outlet:
1"
Max Flow:
75 L/Min
Max Head (Pressure):
61m
Suction Depth:
8m
Size:
800 x 250 x 360 (mm)
Ideal For:
Clean/Rainwater

Description

Product Description

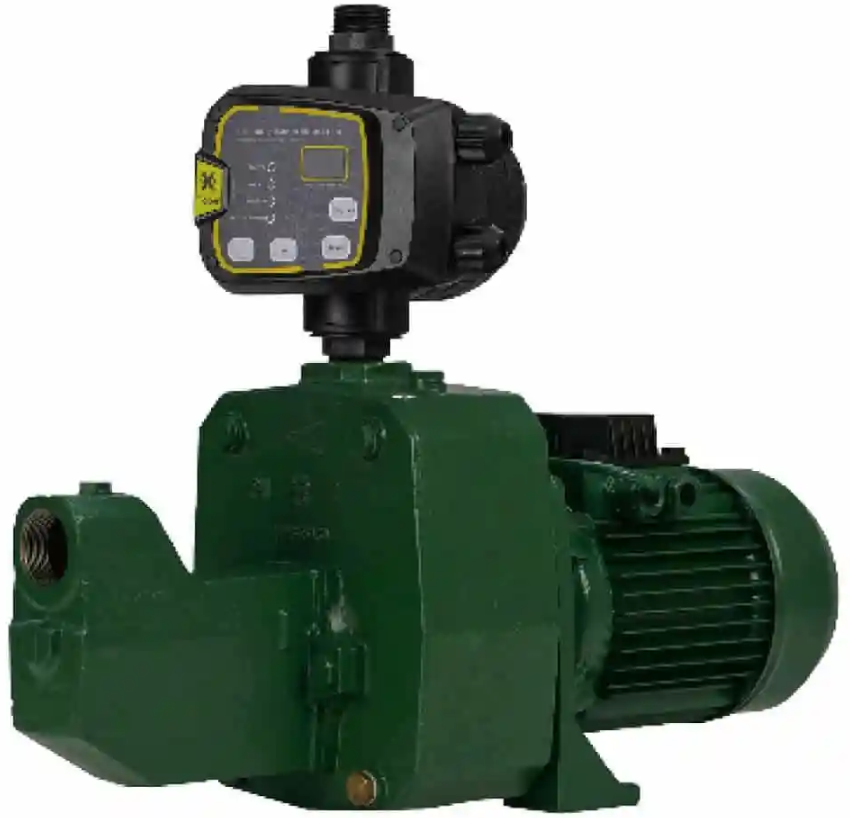

DAB 151NxT Pro Jet Pump Cast Iron Shallow Well Pressure Pump

DAB pumps offer a large range of pumps suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tank, rivers and dams. These pumps are very reliable in the toughest of environments. The pumps are twin stage jet assisted and constructed of cast iron. Capable of suction up to 8 meters

Controller

This pump includes the Bianco iCON nXt PRO series of pump controller.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection
Controller Modes

Two operational modes:

  • Mode One – Adjustable cut in pressure setting.
    • Controller stops pump when flow drops.
  • Mode Two – Adjustable cut in and cut out pressure.
    • Shut down governed by pressure. Requires pressure tank.
Controller Flow Curve


nXt PRO Controller Data
Function ON/OFF + Config
Modes 2
Size 2.2Kw
Rated Voltage 220-240V AC
Max Amps 16
Rated Power 2200w
Rating IP65
Union Size 1″
Start Pressure Adjustable
Stop Pressure Adjustable
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication –
Accessories (Sold Separately) 15 AMP Cable
1 ¼” Union Kit

Bianco ICON nXt PRO Pump Controller



2 Year Manufacturer Warranty
