DAB EUROINOX30/50NXTP Pro Pressure Pump (8 Taps)
  • DAB EUROINOX30/50NXTP Pro Pressure Pump (8 Taps)

DAB EUROINOX30/50NXTP Pro Pressure Pump (8 Taps)

$1,199
Quantity:
SKU:
EUROINOX30/50NXTP
Weight:
12.00 KGS

Specifications:

Other Details

Output:
550W
Outlet:
1"
Max Flow:
80 L/Min
Max Head (Pressure):
42.2m (427kPa)
Size:
510 x 230 x 430 (mm)
Ideal For:
Clean/Rainwater

Description

Product Description

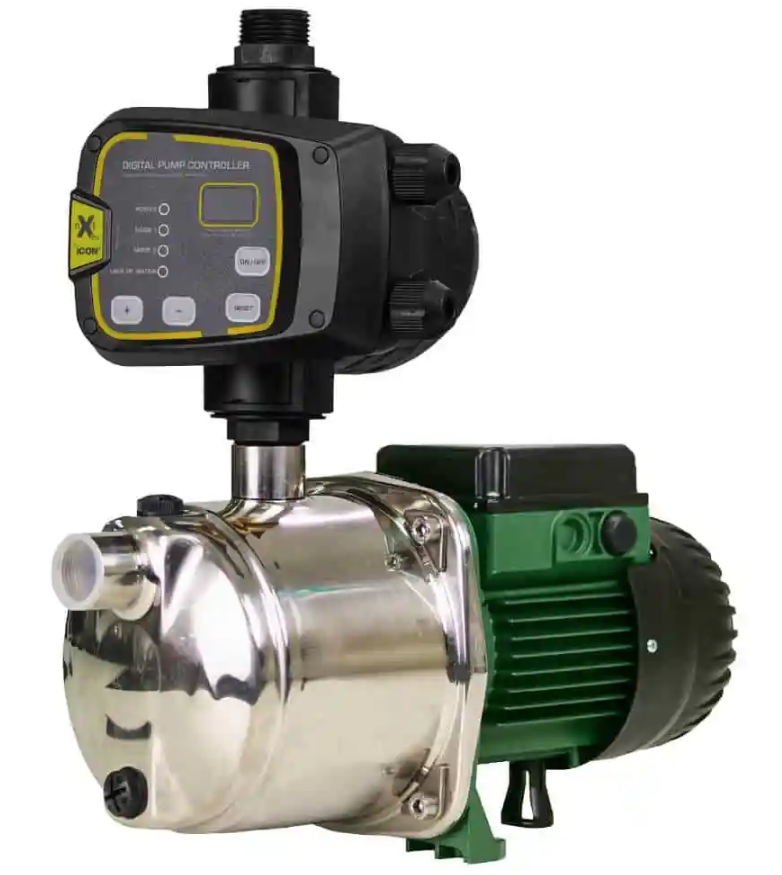

DAB-EUROINOX30/50 NxT Pro Self Priming Stainless Steel Horizontal Multistage Pump

Euroinox Stainless Steel Self Priming Horizontal Multistage Pumps. Fully adjustable pressure switch to reduce pressure fluctuations. Stainless steel pump body for bacteria and corrosion resistance. Brass non return valve and fittings for strength and durability. Replaceable TEFC motor with air gap to stop seal failure water entry.  2 year pump parts & labour warranty.

Note: EUROINOX pumps are AS/NZS4020 approved for drinking water.





Controller

This pump includes the Bianco iCON nXt PRO series of pump controller.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection
Controller Modes

Two operational modes:

  • Mode One – Adjustable cut in pressure setting.
    • Controller stops pump when flow drops.
  • Mode Two – Adjustable cut in and cut out pressure.
    • Shut down governed by pressure. Requires pressure tank.
Controller Flow Curve


nXt PRO Controller Data
Function ON/OFF + Config
Modes 2
Size 2.2Kw
Rated Voltage 220-240V AC
Max Amps 16
Rated Power 2200w
Rating IP65
Union Size 1″
Start Pressure Adjustable
Stop Pressure Adjustable
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication –
Accessories (Sold Separately) 15 AMP Cable
1 ¼” Union Kit



Bianco ICON nXt PRO Pump Controller



2 Year Manufacturer Warranty
