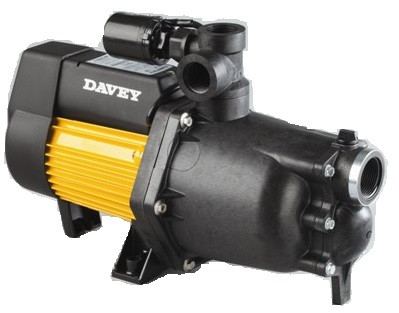

Davey Dynajet XJ50P Pressure Pump W 8LT Or 18LT Pressure Tank 50LT/min, 45m Lift (4 Taps)

Davey Dynajet XJ50P Pressure Pump, with 8LT Or 18LT Pressure Tank

Dynajet XJ pumps are an ideal home pressure system to use when drawing water from a level that is below the pump such as in a buried or partially buried tank. There are 3 models available to suit medium to large homes. Combine with the pressure switch for simple on/off operation.

Dynajet XJ pumps are economical, compact 50, 70 and 90lpm single stage jet assisted centrifugal pumps.

• Ideal for average homes with modern appliances to large double story homes
• Domestic water supply
• Pressure boosting
• Automatic water transfer
• As well as for domestic irrigation from shallow wells or sand spears
• Overhead or high tank filling
• Pressure boosting
• Water transfer

Pump:

• Single stage jet assisted centrifugal with closed vane impeller.
• Brass pump shaft sleeve.
• Internal suction side check valve fitted.
• Mechanical shaft seal.
• Pressure switch control with adjustable cut-in and cut-out pressure.

Motor:

• Davey manufactured.
• 2 pole, 2850rpm, 50Hz. TEFC with IP55 enclosure.
• Class F insulation.
• Permanently split capacitor design.
• Double contact sealed C3-HTG rated ball bearings.
• Protected against both high operating temperatures and high current by a built-in automatically resetting thermal overload.

Tank:

• Required – purchased separately. Davey Supercell 8C or 18C recommended.

Benefits:

• Manufactured from highest quality corrosion resistant materials
• Compact foot print for quick and easy installation
• Fully adjustable pressure switch allows for installation adjustments
• TEFC motor – corrosion resistant and excludes dust and dirt
• Motor and pump designed for frequent starts
• Every unit individually tested to guarantee reliable operation
• Low maintenance
• Easy to service if required
