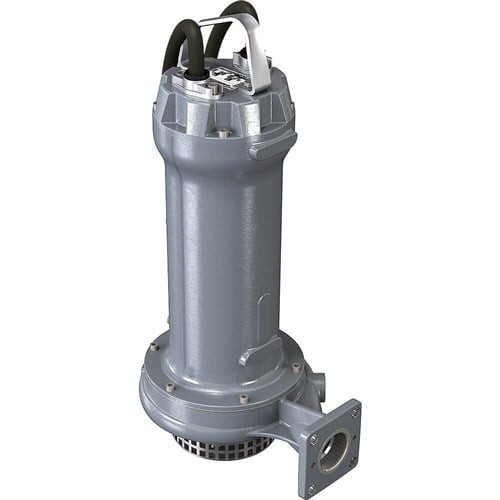

Zenit ZEN-APG300/2/G50HCOETEX – 807400

ZEN-APG300/2/G50HC0ETEX – Zenit Grey High Head Pump – 807400

APG Suitable for
Suitable for clear wastewater, rainwater and seepage. The considerable head guarantees excellent results for the creation of water features and decorative fountains; suitable for use in agriculture, irrigation and the fish processing sector.

Suitable for use in underground carparks.

ATEX certified Ex d.

Technical Specifications

Brand Zenit Pumps
Product Type Submersible Pump
Suitable For Water
Approval ATEX certified Ex d.
Max Flow (L/sec) 6.9
Kilo Watts 2.2 Kw
Max Head (m) 28.7
Port Size Outlet G 2″ – DN32
Series Grey
Warranty (months) 12
Volts 415 V
Zenit Grey pumps feature cleverly redesigned hydraulics and motors to guarantee high performance, low consumption and outstanding versatility. These all translate to greater product efficiency, impeccable reliability and lower operating costs.

Efficient & Reliable
The Zenit Grey series offers reduced purchasing, installation and maintenance times and costs thanks to a wide choice of models and the use of immediately available standard components.

Exceptionally reliable, the Grey series needs far fewer repairs, meaning reduced costs. Running costs will be lower and there will be fewer system stoppages, allowing more effective maintenance scheduling.

Construction materials
Motor casing Cast iron GJL-250
Impeller Cast iron GJL-250
Mechanical seals Two in silicon carbide (2SiC)
Nuts and bolts Stainless steel – class A2-70
Standard gaskets NBR
Drive shaft AISI 431 Stainless Steel
Painting Bicomponent epoxy paint with high resistance to corrosion
Operating specifications
Max operating temperature 40°C
pH of liquid 6 ÷ 14
Liquid viscosity 1 mm2/s
Max submergence 20 m
Liquid density 1 kg/dm3
Max acoustic <70 dB
Max. starts/hour 20 (<10 kW)
15 (>10 kW)
