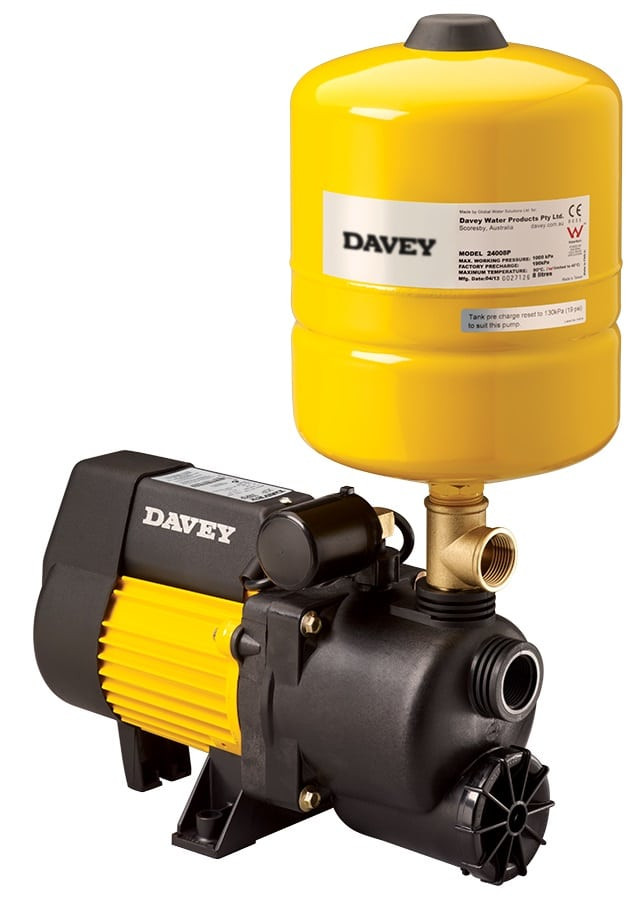

Davey XP25P8 Pressure Pump with 8LT Pressure Tank

Davey XP25P8 Pressure Controlled System with 8LT Pressure Tank

XP Water Pressures Systems are a robust and compact single stage jet assisted water pump, suitable for small to medium sized single storey households with varying water quality.

The XP water pressure systems have been certified and tested to comply with the requirements of the AS/NZS 4020 standard. The AS/NZS 4020 standard stipulates that products in contact with drinking water do not affect the taste or appearance of the water, do not support the growth of micro-organisms and do not release cytotoxic or mutagenic compounds or metals into the water.

The unit features a TEFC corrosion resistant motor driven by a single stage, jet assisted centrifugal pump and includes a built in pressure accumulator with a “Supercell” 8P tank which provides 3 litre draw-off.

• Manufactured from quality corrosion resistant materials
• Motor and pump designed for frequent starts
• Discharge may be rotated through 180º – makes plumbing easier
• Quick and easy installation
• Low maintenance
• Easy to service if required
• Every pump is performance and pressure tested in our factory to ensure quality and reliability

Economical, compact 25lpm jet assisted centrifugal pressure pump. The unit features a TEFC motor and includes a built in pressure accumulator. Why choose the Davey XP Pressure Pump?

Single stage jet assisted centrifugal pump

• Higher operating pressures
• Less moving parts for increased dependability

Corrosion resistant engineered thermoplastic pump components

• Longer life when pumping a variety of water qualities
• Reduced friction within the casing and impellers
• Pump feet provide outstanding life even when installed on wet surfaces

In-built compact accumulator and pump casing for

• Easier installation in small spaces
• Longer accumulator life

Internal suction check valve for easier installations High quality purpose built 2 pole IP55 Davey pump motors with

• Choice of 220/240 volt, 50/60Hz, 2850rpm or 110/115 volt, 60Hz, 3420 rpm to suit almost every supply voltage
• Permanent split capacitor starting for dependable and frequent starting everytime
• In-built thermal overload for long motor life and protection against motor damage due to jamming
• High quality C3 - HTG rated fully sealed bearings for longer life
• Fitted with a 2m long power lead with 10amp Australian three pin plug for ease of connection to power supply

Designed with the serviceman and installer in mind

• Suction and discharge are close for easier installation
• Quality components throughout for long life and easier maintenance
