Specifications:
[808364]

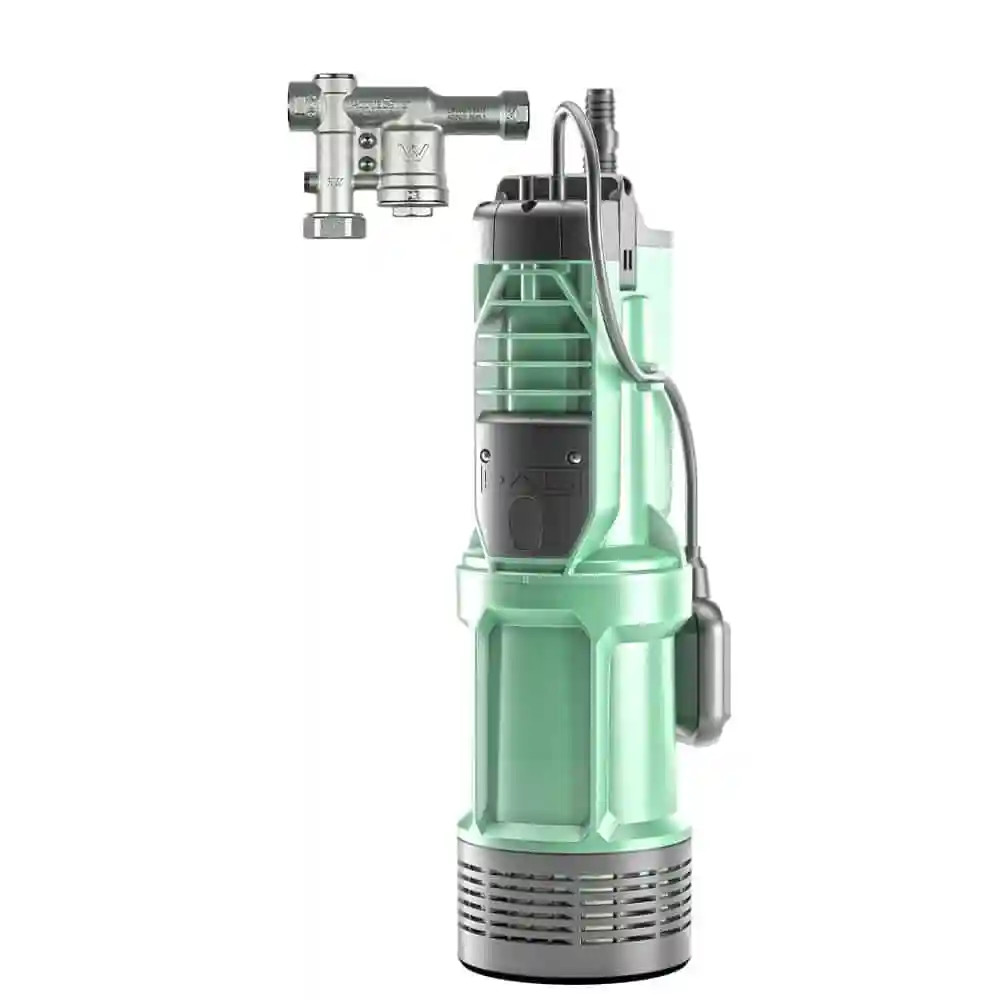

DAB DIVERTRON1200 pressure system pump with auto restart controller. Acquasaver A2 ¾” solid brass with dual check valve tank-2-mains switch device. Watermark approved for connections to all Town Water supplies. Safe against waterborne bacteria, dezincification and lead poisoning. Australian Owned and designed. The pump regulates flow and pressure and protects itself against voltage fluctuations and loss of water. The Acquasaver A2 can operate without power and can be located any distance from the pump, and even inside the rain water tank. AS/NZS4020 Drinking Water Approved.
The AcquaSaver® Valve will always prioritize the use of rainwater over mains water when rainwater is available and will automatically switch over to mains water in the event of the rainwater tank running low or electrical failure
When rainwater has been replenished or power has been restored to the pump, the AcquaSaver valve will automatically prioritize back to rainwater.
The pump is only active when rainwater is being drawn from the water tank, it does not operate when the AcquaSaver Valve has switched to mains position.
The pump controller starts and stops the pump when it detects a demand – for example flushing a toilet or using a washing machine.
The operating mechanism of the AcquaSaver Valve is a unique patent design, it works by hydraulic water pressure created by the pump to close one inlet fully before opening the other inlet. This ensures an extremely reliable mechanism using few moving parts and no electronic components and no energy consumption.
| Brand | DAB Pumps |
| Product Type | Pressure System |
| Suitable For | Clean Water |
| Bar | 4.8 Bar |
| Approval | Approved For Drinking Water |
| Cable | 15 m |
| Flow Range Category | a. 0 – 99 L/min |
| Flow Rate (L/min) | 95 L/min |
| Hp | 1 Hp |
| kPa | 486 kPa |
| Kilo Watts | 0.75 kW |
| Head Range Category | b. 40 – 59 m |
| Max Head (m) | 48 m |
| Port Size Outlet | 1″ BSPF outlet |
| Powered | Electric |
| Taps | 9 Taps |
| Warranty (months) | 24 Months |
| Volts | 240 V |
| Watts | 750 W |
